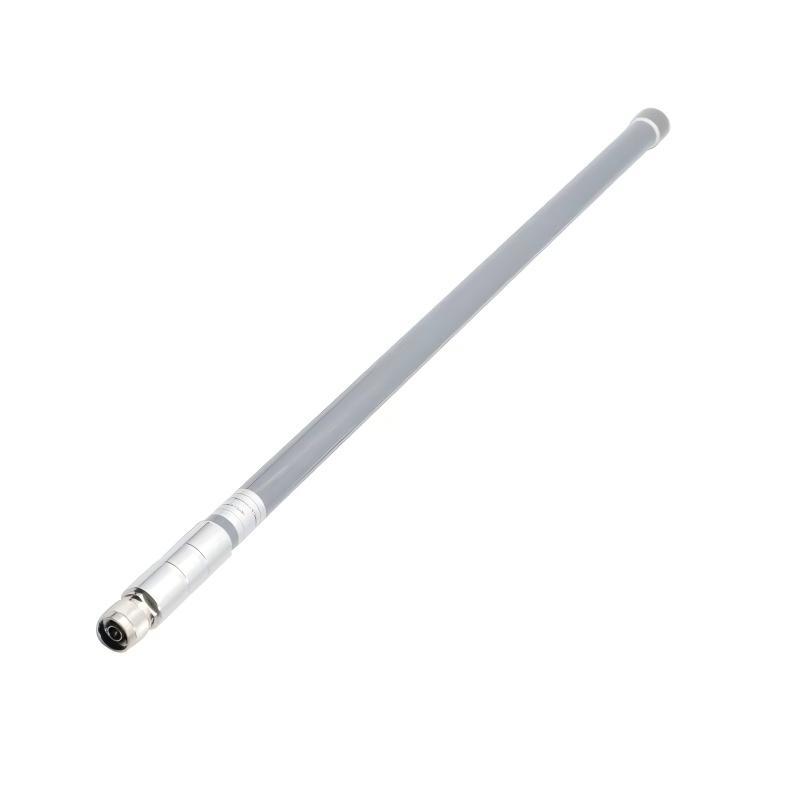

LORA LORAWAN ANTENNA 868 MHZ 3DBI OMNIDIRECTIONAL
零售价
市场价
keyword：
重量
库存
隐藏域元素占位
- Product Description
-
Features
Average gain dBi: 7dBi
Frequency range: 900-930MHz
Length of 92cm
Robust enough to withstand the harsh outdoor environment
Can connect to the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway
Includes hardware for mounting
Comes with a 1m cable
For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 7dBi, a length of 92cm, and a frequency range from 902-930MHz and it comes with hardware for pole and wall mounting.

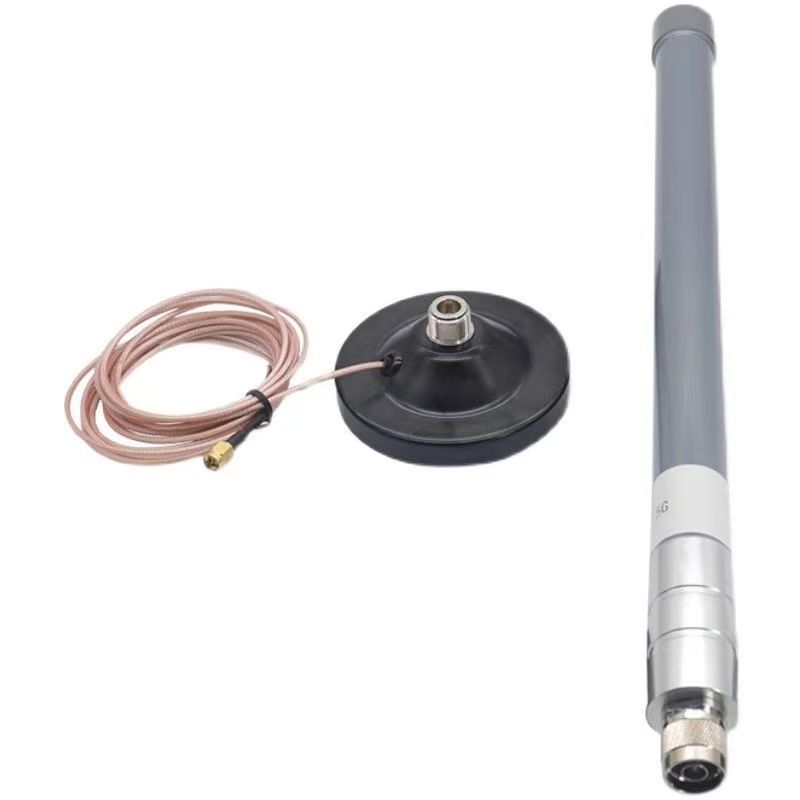

The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.
868MHZ Rubber Antenna ,868MHZ Antenna with magnetic base ,868MHZ Fiberglass antenna ,
Application
The antenna can be used in any environment where long-range LoRa connections are required.Agriculture
Environmental Monitoring
Urban MonitoringParameters
Frequency 900-930MHz Antenna Gain 7.0 +/-0.8dBi V.S.W.R <=1.5 @ 900~930 MHz Efficiency >=60% Radiation Pattern Omni-Directional Max Input Power >=2W Polarization Linear polarization/ Vertical Impedance 50 Ohm Material of Radiator CU Material of Plastic FRP (white light) Cable Type RG-141 50Ohm Connector Type N-J Double tooth connector Operation Temperature -30°C ~65°C Storage Temperature -30°C~65°C Antenna Color Storage life < 2 year Cable length 1m/3m/5m/10
